Quick Details

  • Type: Packaging Line
  • Condition: New
  • Application: Beverage, Chemical, Commodity
  • Packaging Type: Cartons
  • Packaging Material: Paper, Plastic
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 220/380/440v
  • Power: 12kw
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: huayu
  • Model Number: 1200
  • Certification: CE
  • After-sales Service Provided: Overseas third-party support available
  • max.cardboard: 1200x2800mm
  • installation area: 3000x15500mm

Packaging & Delivery

Packaging Details standard packaging
Delivery Time 30days after we recieve the deposit

http://hycartonmachine.com/


Product Description

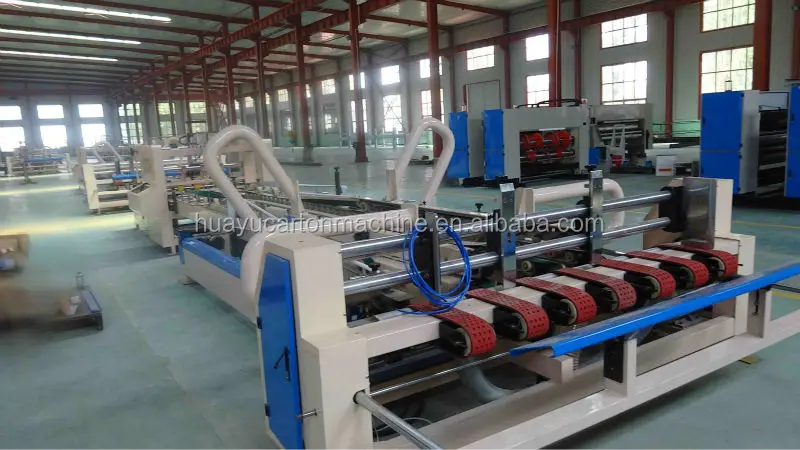

The automatic corrugated carton box folder gluer machine use the glue to paste the ear of the corrugated carton box. The machine consist of three sections: vacuum feeding section, gluing and folding section, counter and stacker section. Frequency conversion motor with inverter adjust speed. PLC and Touch screen control system for easy operation and running stable. Average speed is 150sheets/min.  It is the good machine suitable for the medium and big carton box factory.



Feeding section:

1.Vacuum   suction   feeding   to   feed warping   paperboard   easily

2.Quality electromagnetic   clutch and brake adpoted, feeding section   controled     independent, operation   easily

3. Scorer wheel adjustable, suit for 2-8mm thick paperboard

4.Second creasing struction can impress again the paperboard which was not creased well



Guling and Folding section

1.glue quantity adjustable, cleaning easily

2.Stainless steel glue wheel adopted, long life and saving glue cost

3.Imported quality rubber belt adopted, automatic folding

4.With paperboard rectify device and creasing rectify device



Counter and Stacker section

1.Stacking and counting are simple and reliable

2. Digital control ,operation easily and reliable. No-stop put in data and automatic counting

3. With rectification function.

4. Counting and put out by pneumatic, stable and quickly





Main technology parameter

Model

YF-2200

YF-2600

YF-3000

Size A (mm)

80---880mm

80---880mm

80---880mm

Size B (mm)

700---2000mm

700---2400mm

700---2600mm

Size C (mm)

160---840mm

160---840mm

160---840mm

Size D (mm)

260---1200mm

260---1200mm

260---1200mm

Install size

4000 x14000

4000 x15000

4000 x16000

Power

10kw

12kw

12kw



Packaging & Shipping

Suitable to delivery by plastic and paperboard by sea.



Our Services

We have a professional team to solve your problems pre-sale and after-sale



Company Information

Our company always adhere to the "quality first, credibility first" business philosophy, and from time to time to seize the opportunity, deepen the reform, innovation, the quality of our products to the international road to higher quality, better prices and more comprehensive after-sales service, to reciprocate the trust of old and new friends from all walks of life.

Our Company has full mechanical equipment, high degree of specialization, more manufacturing experience, has strong technical strength, advanced detection methods, complete management system, and also has passed ISO9001: 2008 international quality management system certification and European CE certification, we are a rising star in carton printing machinery industry.
